Welcome to RGB LED module repository


Vertical ultrasonic module

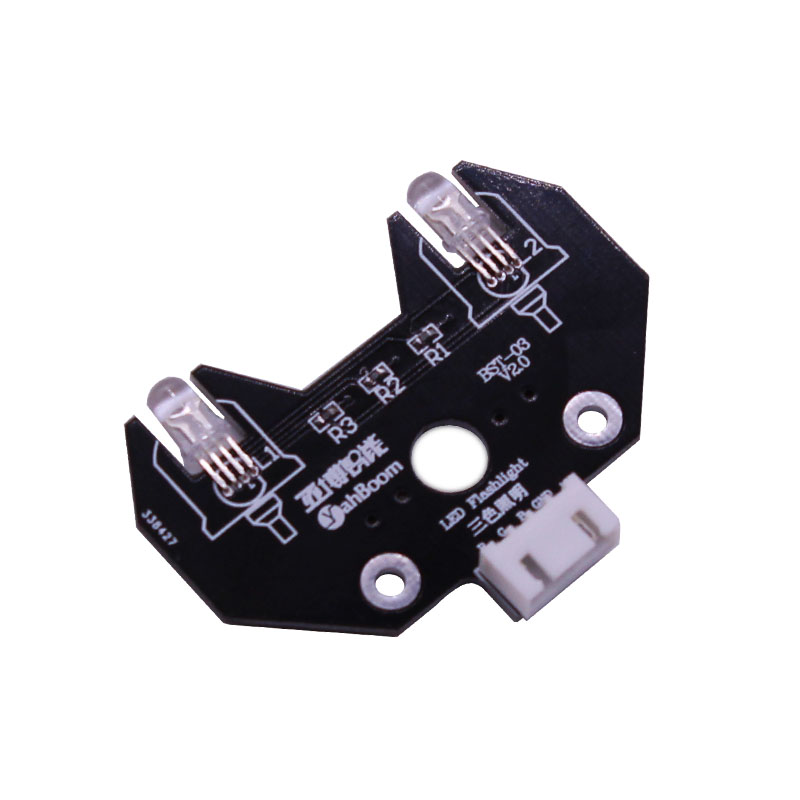

This RGB LED module is divided into 5mm small lamp beads and 10mm large lamp beads. You can choose according to your needs.

  image.png  image.png

  image.png   image.png

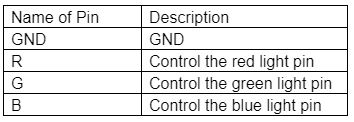

1.Description of Pin


1-1  Position of Pins

The anti-reverse socket is used here, and it can be connected by cable or DuPont wire.


2.Lamp bead


Working principle:

3 LEDs (red, green, blue) are packaged in the RGB lamp module. We can mix different colors(256*256*256) by controlling the brightness of the three LEDs.

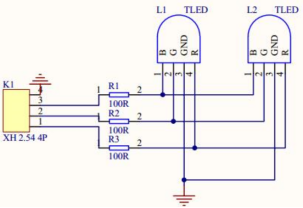

Schematic:


We will provide Arduino, Raspberry, Micro:bit driver source code.

(The definition of the pin can be changed in the program by yourself)
