Welcome to 2DOF PTZ repository

Description

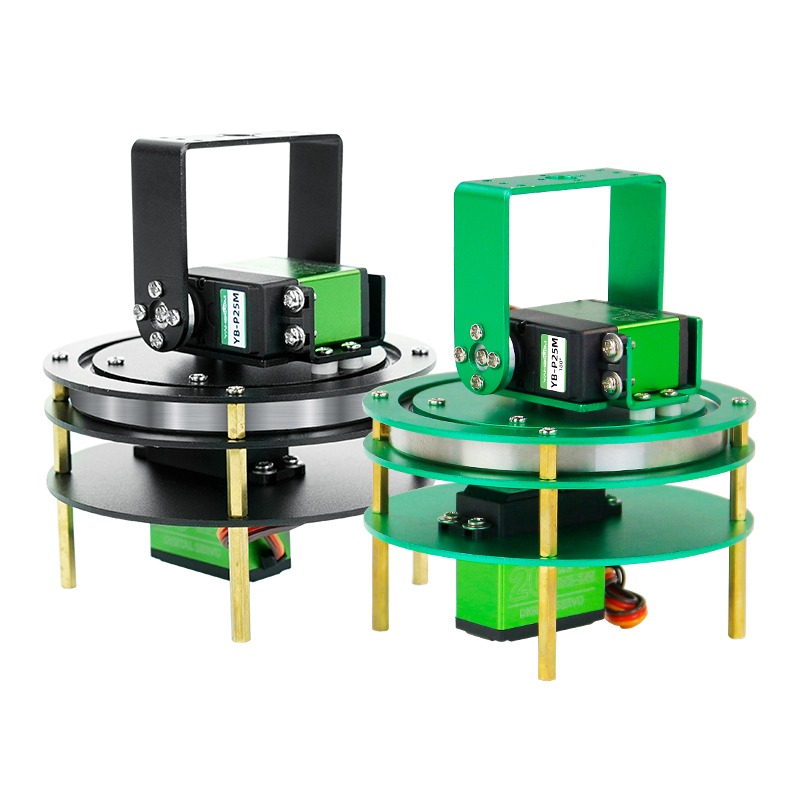

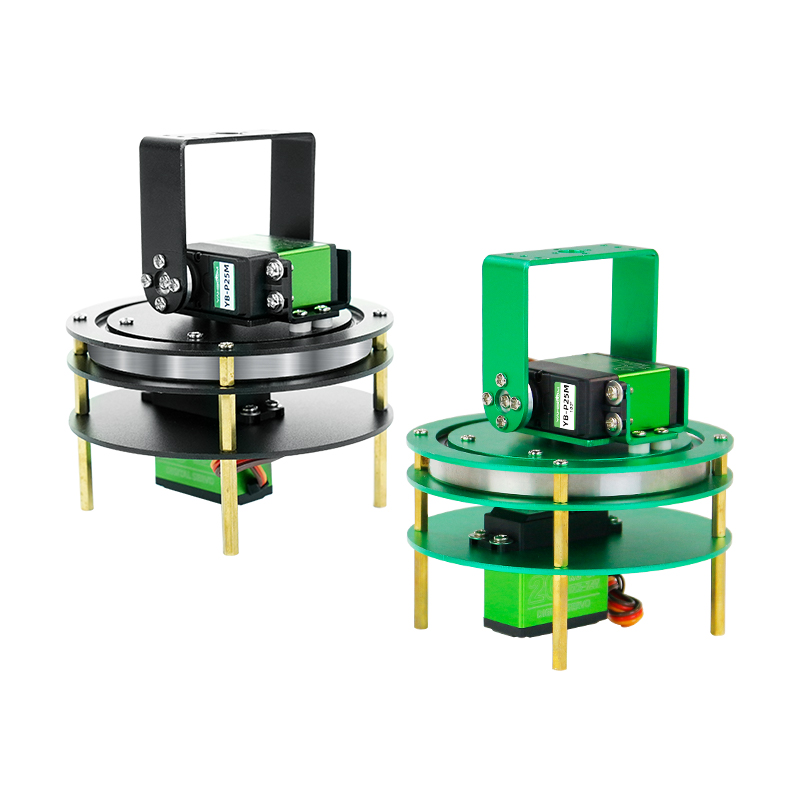

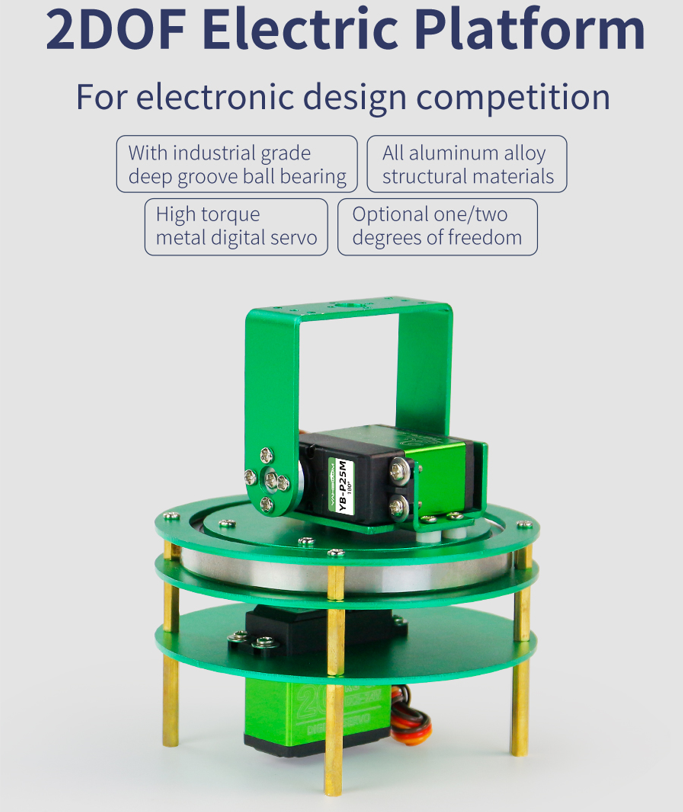

This 2DOF servo PTZ consists of a 20KG 270° servo, a 25KG 180° servo and an aluminum alloy bracket. With industrial grade deep groove ball bearing, it can not only rotate smoothly, but also have better load capacity. It supports 270 ° rotation from left to right and 180 ° rotation from top to bottom. We have also designed many reasonable holes. Users can install various sensors and cameras, or install the PTZ on the robot car.

Features

1) High quality, large torque, metal digital servo.

2) Industrial grade manufacturing process and deep groove ball bearing are solid and durable.

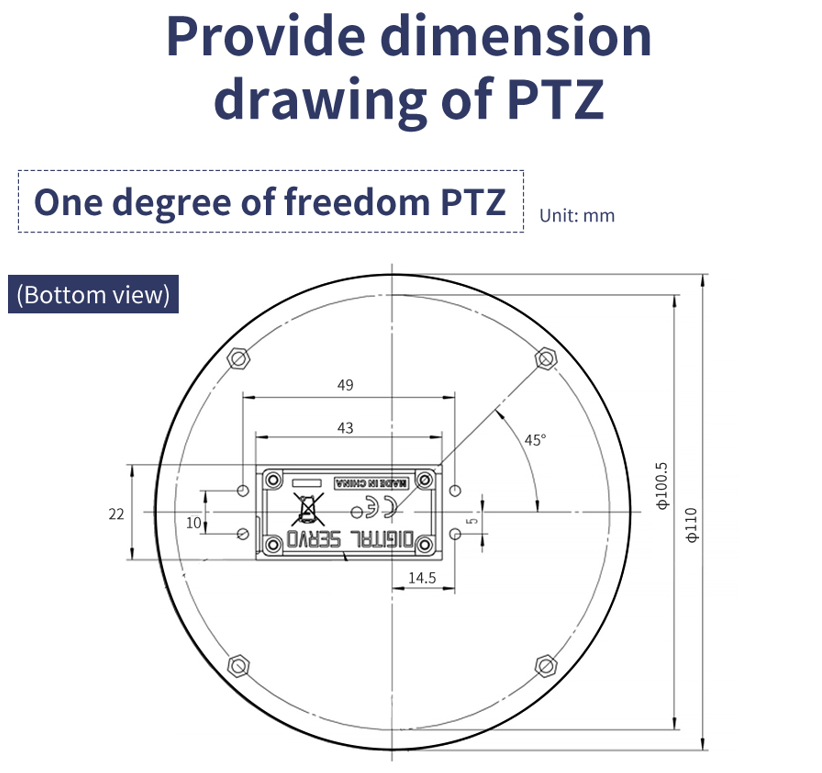

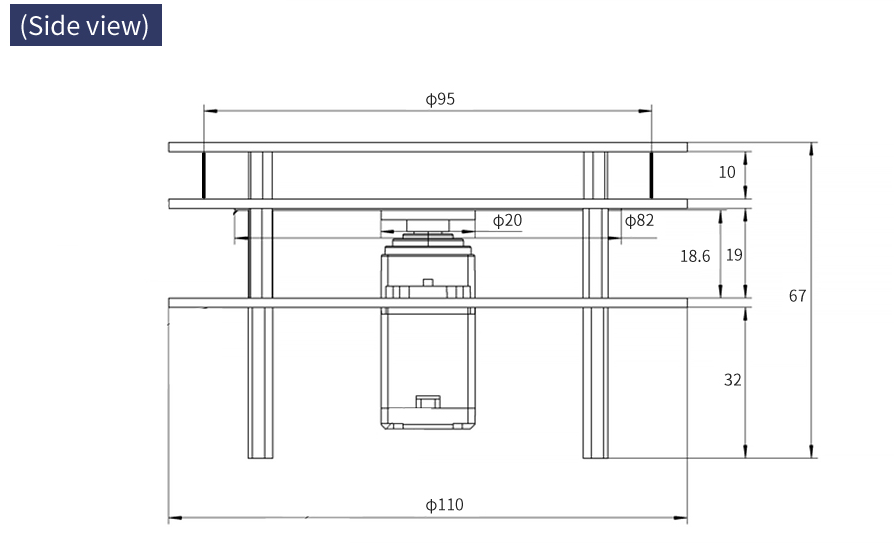

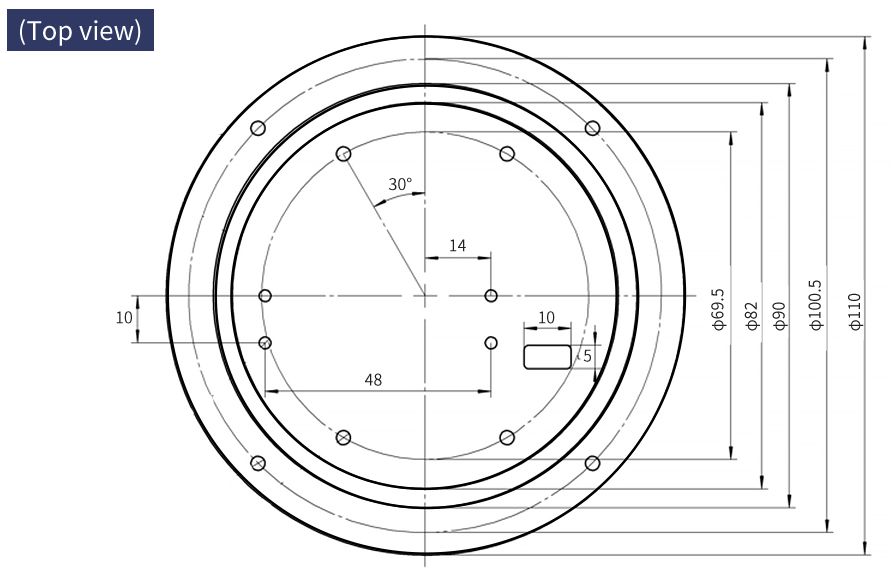

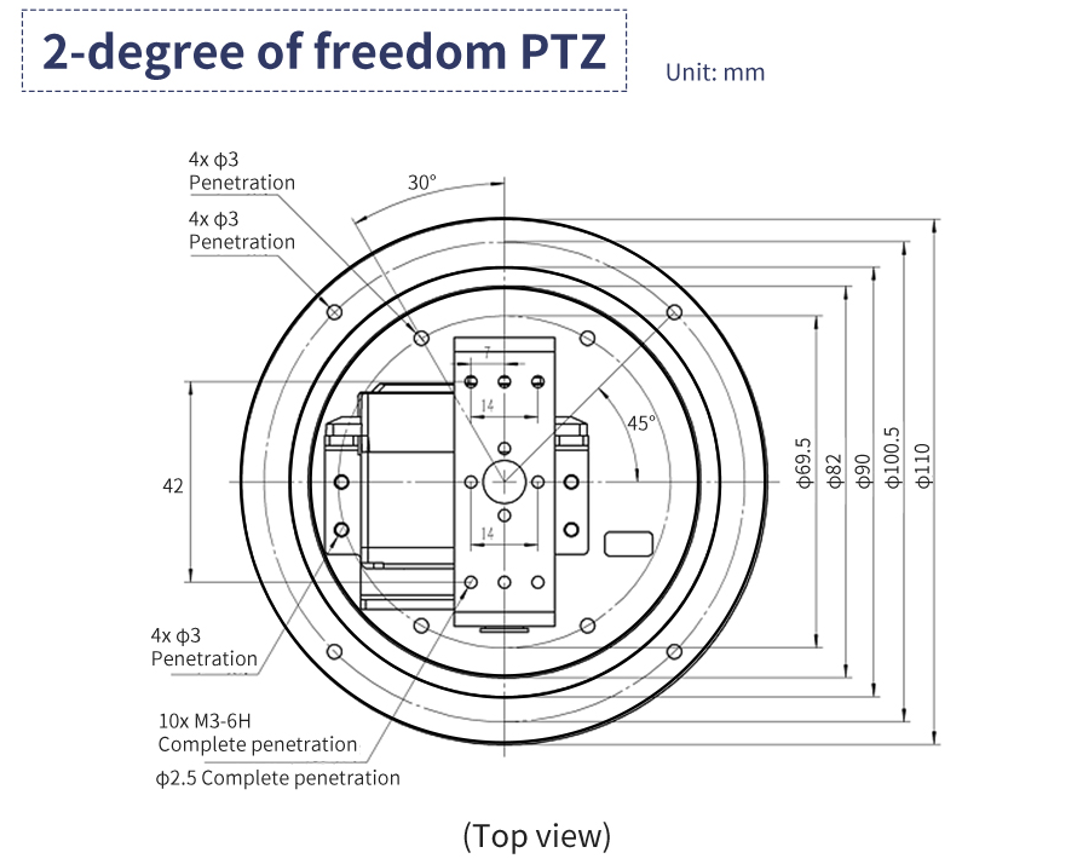

3) It is attached with reasonable screw hole position, allowing users to install external equipment.

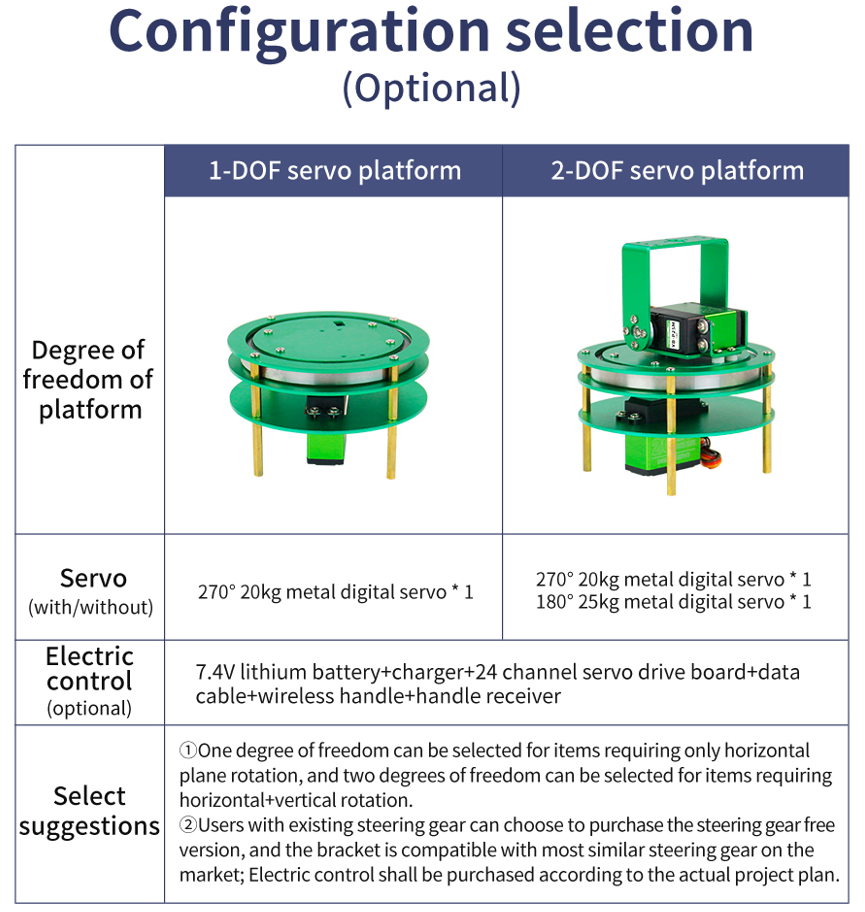

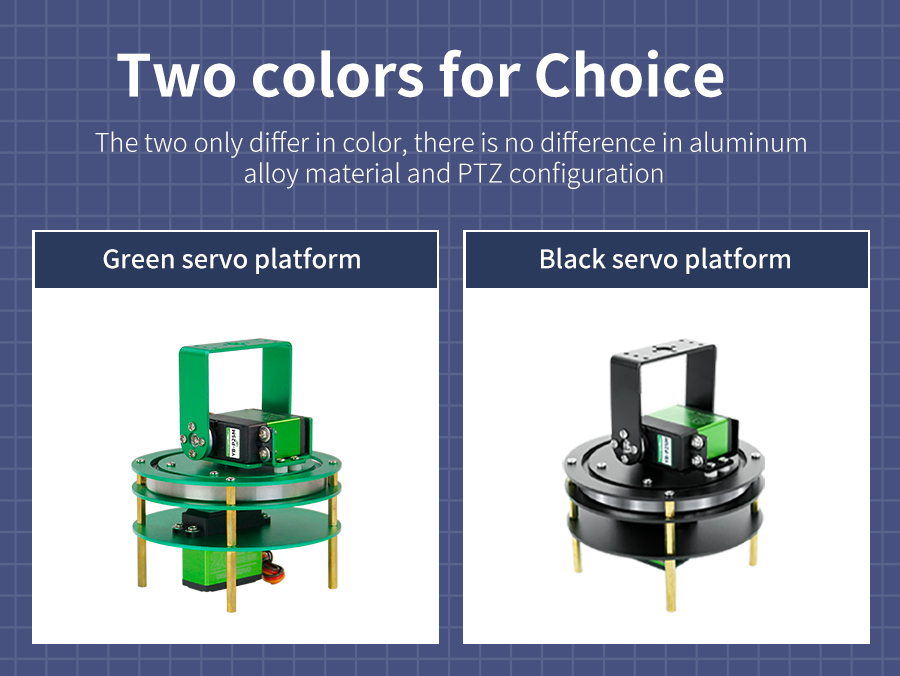

4) A variety of configurations are available for users.
