Picamera2 Example

Picamera2 ExampleReferencesPreliminary preparationDownload the official source codeInstall OpenCV dependenciesPicamera2 exampleObject detectionPose estimationObject segmentationImage classification

Examples of using Picamera2 for image classification, object detection, object segmentation, and pose estimation.

References

Official website of Raspberry Pi AI Camera

https://www.raspberrypi.com/documentation/accessories/ai-camera.html

Preliminary preparation

Download the official source code


xxxxxxxxxx
git clone https://github.com/raspberrypi/picamera2.git

If you cannot download, you can find the file in the software data folder.

Install OpenCV dependencies


xxxxxxxxxx

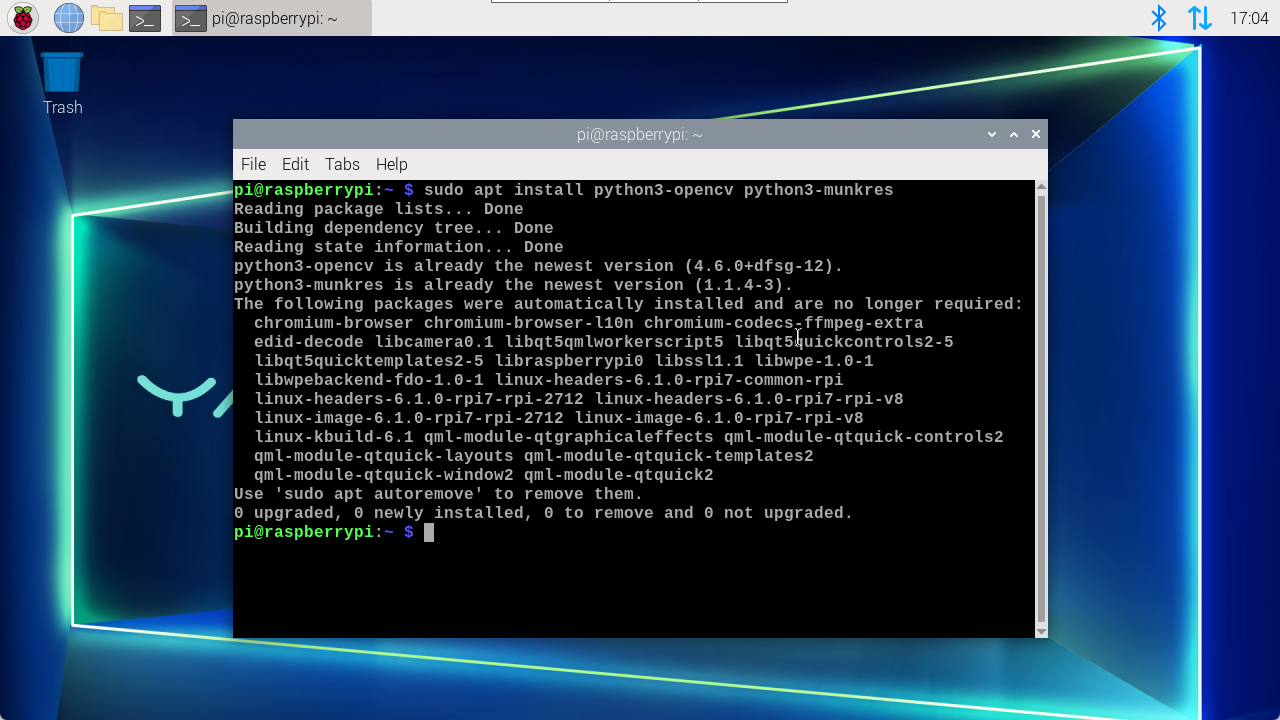

sudo apt install python3-opencv python3-munkres

Picamera2 example

All cases require the neural network model to be loaded successfully before the screen is displayed, otherwise the preview screen is a black interface!

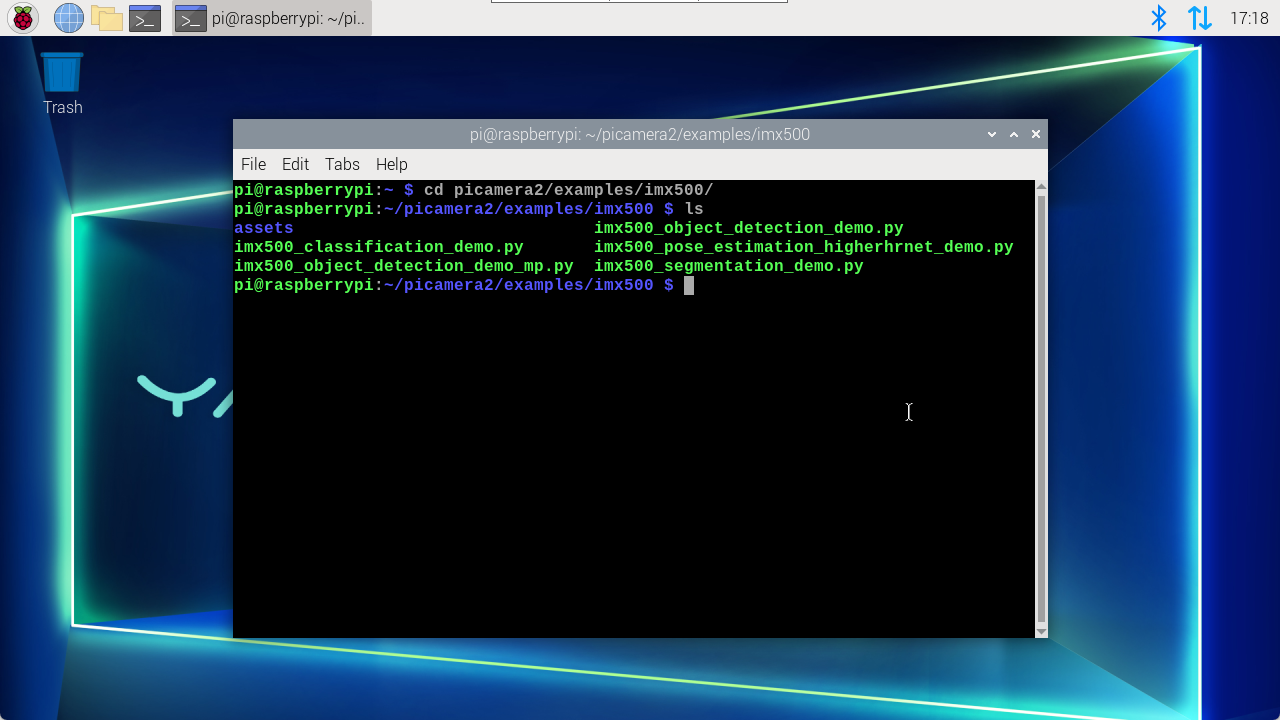

Enter the example folder


xxxxxxxxxx
cd picamera2/examples/imx500/

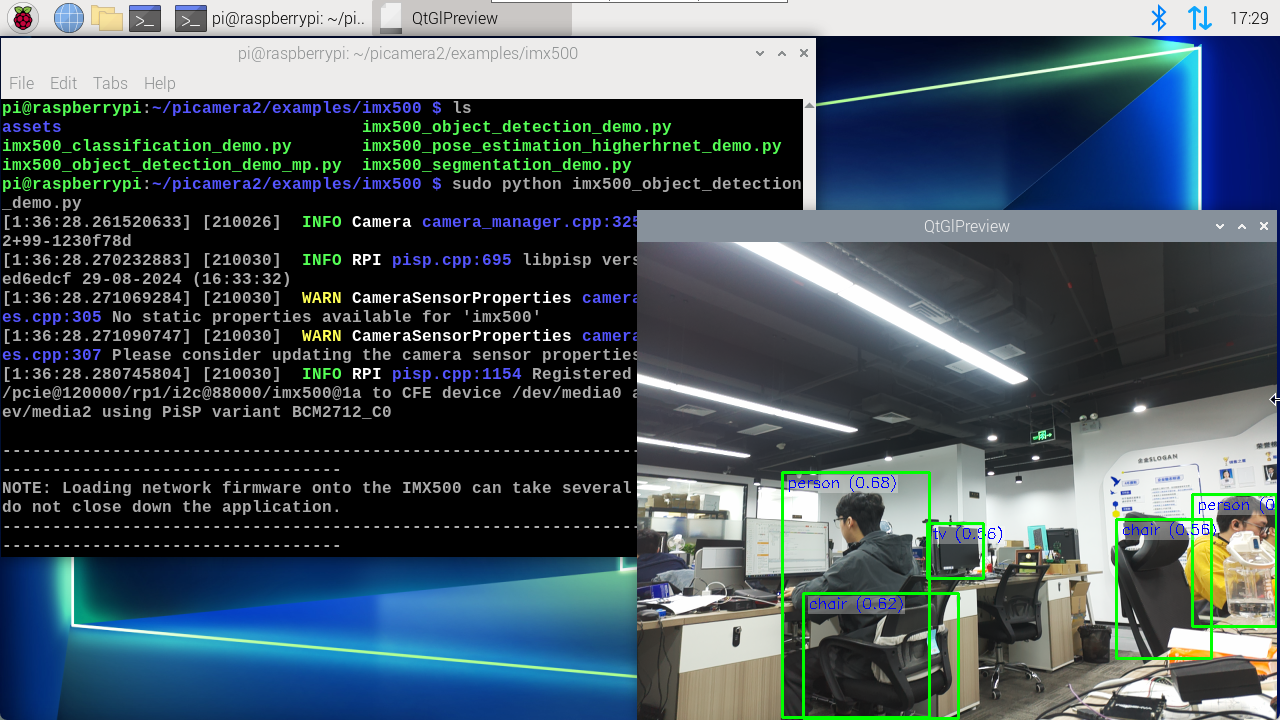

Object detection


xxxxxxxxxx
sudo python imx500_object_detection_demo.py

Use Ctrl+c shortcut key to close the program in the terminal.

Pose estimation


xxxxxxxxxx
sudo python imx500_pose_estimation_higherhrnet_demo.py

Use the Ctrl+c shortcut key in the terminal to close the program.

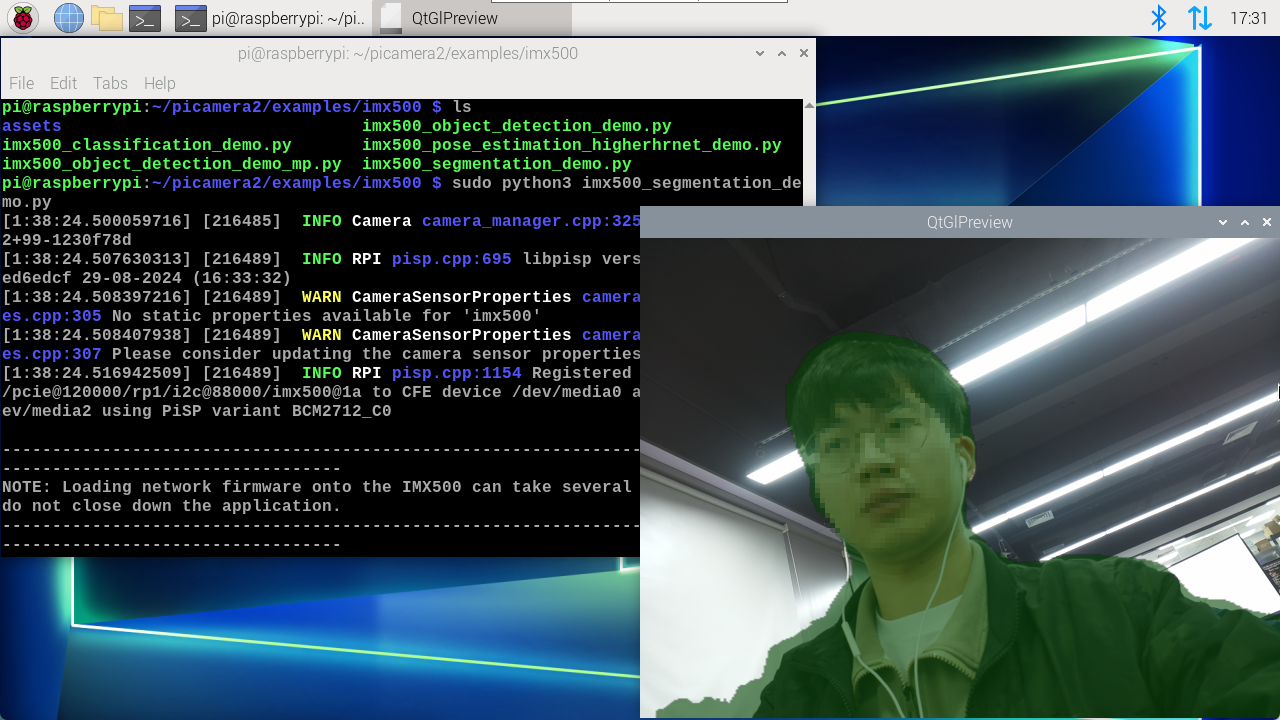

Object segmentation


xxxxxxxxxx
sudo python3 imx500_segmentation_demo.py

Use the Ctrl+c shortcut key in the terminal to close the program.

Image classification


xxxxxxxxxx
sudo python imx500_classification_demo.py

Use Ctrl+c shortcut key to close the program in the terminal.
