5. MoveIt Cartesian path

This lesson takes MoveIT simulation as an example. If you need to set up the real machine and simulation to be synchronized, please see the lesson [02, MoveIt Precautions and Controlling the Real Machine]. ! ! ! be safe! ! !

The effect demonstration is a virtual machine and other main control running conditions (related to the main control performance, depending on the actual situation).

5.1, Introduction

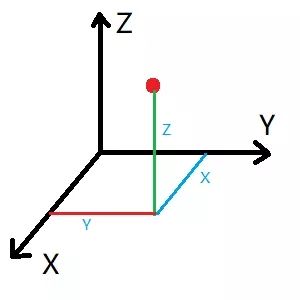

The Cartesian coordinate system is the collective name for the Cartesian coordinate system and the oblique coordinate system. A Cartesian path is actually a line connecting any two points in space.

5.2, Start

xxxxxxxxxx
#Raspberry Pi 5 master needs to enter docker first, please perform this step
#If running the script into docker fails, please refer to ROS/07, Docker tutorial
~/run_docker.sh

Start MoveIT

xxxxxxxxxx
roslaunch arm_moveit_demo x3plus_moveit_demo.launch sim:=true

<PI5 needs to open another terminal to enter the same docker container

Start Cartesian Path Node

xxxxxxxxxx
rosrun arm_moveit_demo 04_cartesian # C++
rosrun arm_moveit_demo 04_cartesian.py # python

• C++ code examples

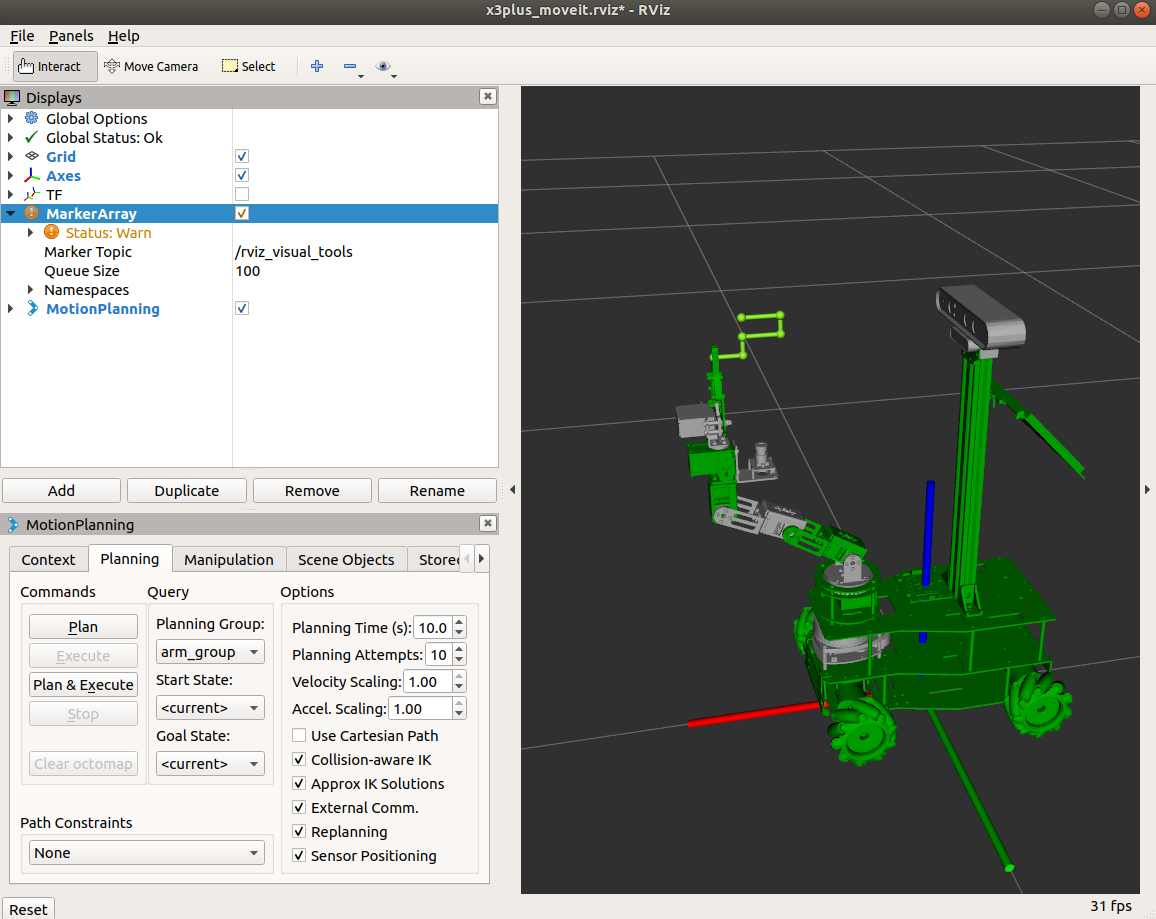

To view the trajectory, you need to add the [MarkerArray] plug-in and select the [/rviz_visual_tools] topic.

• python code examples

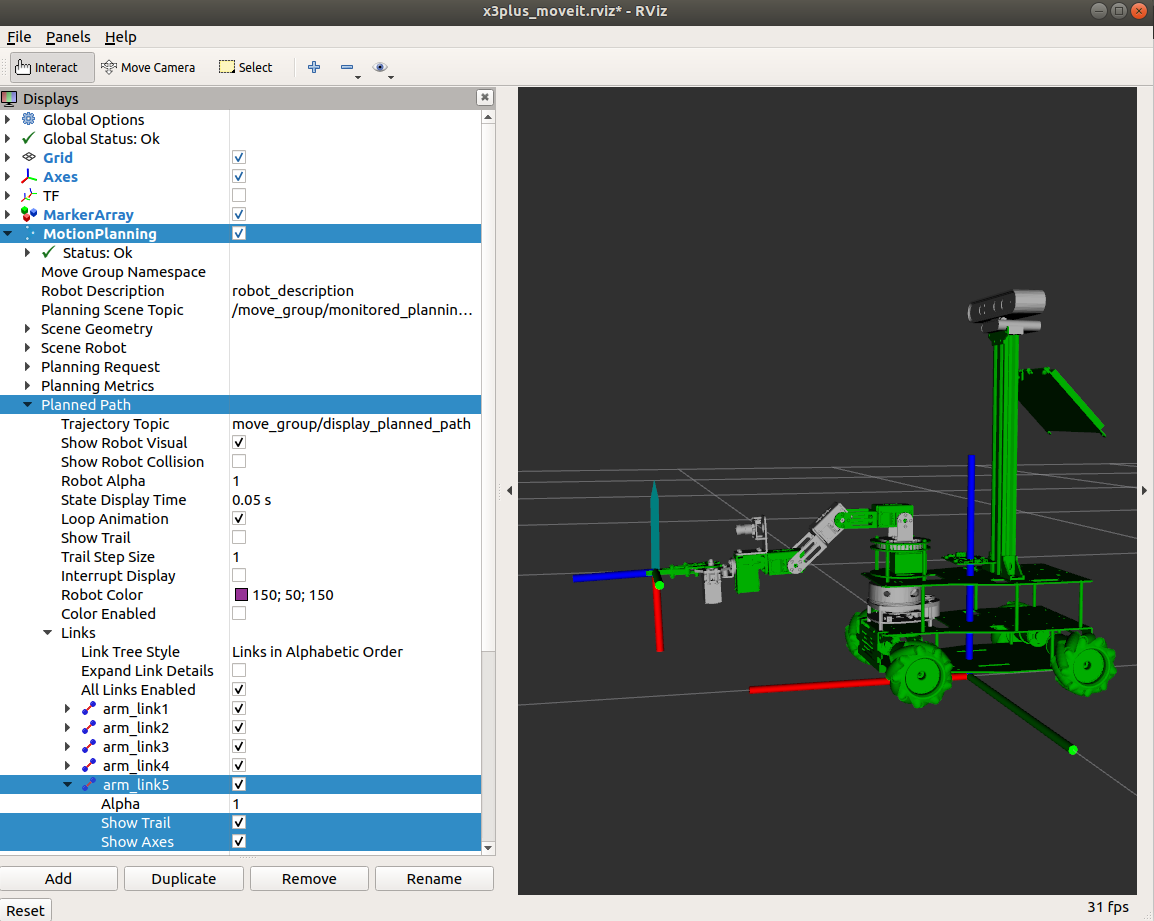

The python code does not have a similar trajectory to C++, but you can view the end description and open it as shown in the figure below.

5.3, source code

5.3.1, py file

Set a specific location

xxxxxxxxxx
     rospy.loginfo("Set Init Pose")
     joints = [0, -1.57, -0.74, 0.71, 0]
     yahboomcar.set_joint_value_target(joints)
     yahboomcar.execute(yahboomcar.plan())

Add waypoint

xxxxxxxxxx
     #Initialize the waypoint list
     waypoints = []
     # If True, add the initial pose to the waypoint list
     waypoints.append(start_pose)
     for i in range(3):
         #Set waypoint data and add it to the waypoint list
         wpose = deepcopy(start_pose)
         wpose.position.z += 0.13
         waypoints.append(deepcopy(wpose))
         wpose.position.z -= 0.13
         waypoints.append(deepcopy(wpose))

waypoint planning

xxxxxxxxxx
         '''
         waypoints: list of waypoints
         eef_step: terminal step value, calculate the inverse solution every 0.1m to determine whether it is reachable
         jump_threshold: Jump threshold, set to 0 to disallow jumping
         plan: path, fraction: path planning coverage
         '''
         (plan, fraction) = yahboomcar.compute_cartesian_path(waypoints, 0.1, 0.0, True)

5.3.2, C++ files

Set a specific location

xxxxxxxxxx
     ROS_INFO("Set Init Pose.");
     //Set specific location
     vector<double> pose{0, -0.69, -0.17, 0.86, 0};
     yahboomcar.setJointValueTarget(pose);

Add waypoint

     //Initialize path point vector
     std::vector<geometry_msgs::Pose> waypoints;
     //Add the initial pose to the waypoint list
     waypoints.push_back(start_pose);
     start_pose.position.x -= 0.04;
     waypoints.push_back(start_pose);
     start_pose.position.z -= 0.02;
     waypoints.push_back(start_pose);
     start_pose.position.x += 0.04;
     waypoints.push_back(start_pose);
     start_pose.position.z -= 0.02;
     waypoints.push_back(start_pose);
     start_pose.position.x += 0.03;
     waypoints.push_back(start_pose);

waypoint planning

xxxxxxxxxx
fraction = yahboomcar.computeCartesianPath(waypoints, eef_step, jump_threshold, trajectory);
