This tutorial demonstrates how to control an onboard RGB breathing light on a development board using a Universal Timer (TIM3) .

1、software-hardware

STM32F103CubeIDE
STM32 robot extension board
TIM: Chip internal peripherals
RGB: Onboard
Type-C cable or ST-Link
Download or simulate the program of the development board

2、Brief principle

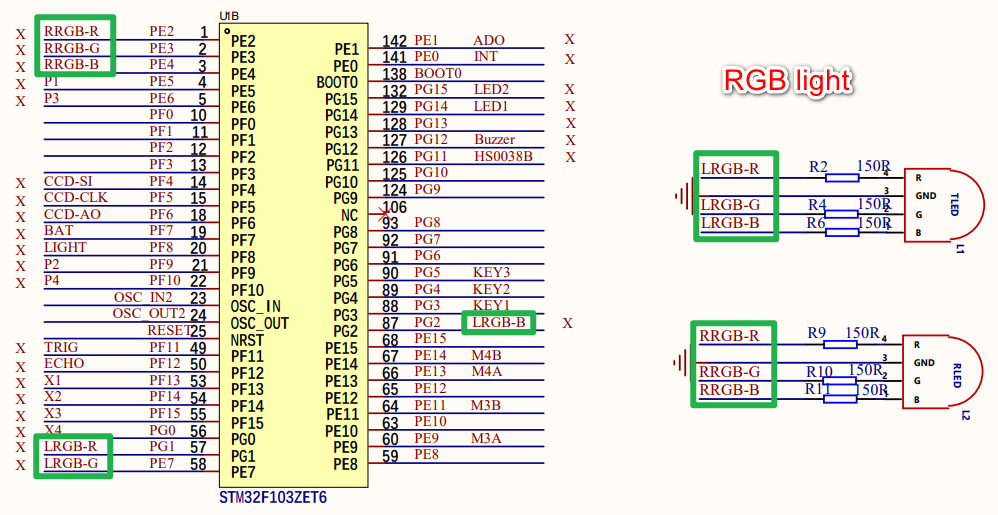

2.1、Hardware schematic diagram

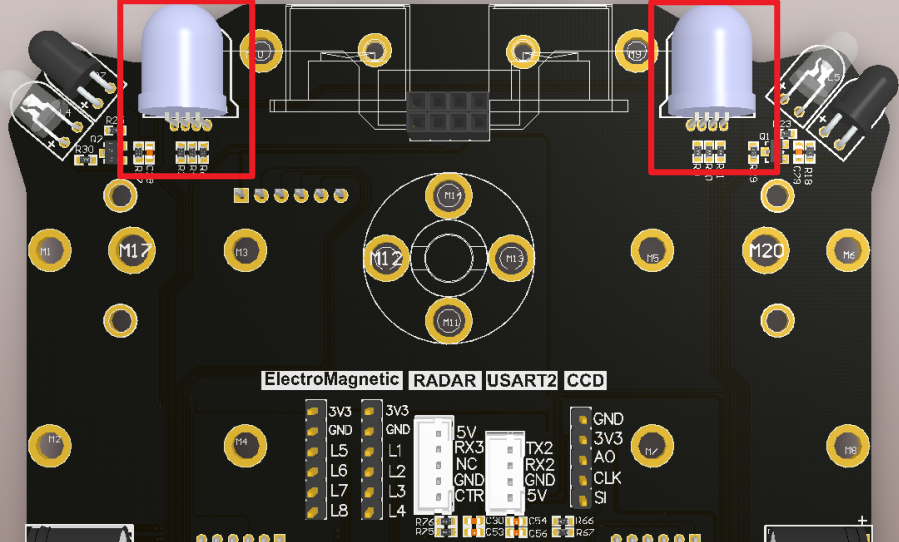

2.2、Physical connection diagram

2.3、Principle of control

By changing the duty cycle of the PWM signal, the Angle of rotation of the servo is controlled

PWM（Pulse Width Modulation）

PWM, short for Pulse width modulation, is a technique that controls the level by adjusting the pulse width of a signal.

Period：the duration of a complete PWM waveform;

Duty cycle：The ratio of the duration of the high level to the cycle time;

Frequency：The inverse of the period is called frequency, which is the number of PWM cycles generated per second;

Universal timers

The timing counting function of TIM3 on the STM32F103ZET6 development board is used

The Basics

Timer types	Universal timers
The timer name	TIM2、TIM3、TIM4、TIM5
Number of counter bits	16
Counting mode	Increase/decrease/center alignment
Predivision coefficient	1-65536
Generating DMA requests	Yes
Capture/compare channels	4
Complementary output	No
Clock frequency	72MHz（max）
Mount bus	APB1

Time base cell

register	Function
The counter register（TIMx_CNT）	The current value of the counter
Predivider register（TIMx_PSC）	Set frequency division coefficient (1-65536)
Automatically reload registers（TIMx_ARR）	The counter counts the boundary and the overloaded value

Timing formula

T (s) = \frac{(A R R + 1) * (P S C + 1)}{T I M_C L K (H z)}

parameter	meaning
T（s）	Timing time in seconds
ARR	Automatically reload the value
PSC	Predivision coefficient
TIM_CLK	The timer ticks in Hz

Timing time for the project: 10us

T (s) = \frac{(A R R + 1) * (P S C + 1)}{T I M_C L K (H z)} = \frac{(9 + 1) * (71 + 1)}{72000000 (H z)} = 0.00001 s = 10 u s

3、Engineering configuration

Project Configuration: Prompt for configuration options during STM32CubeIDE project configuration

3.1、Notes

Omitted project configuration: New project, chip selection, project configuration, SYS for pin configuration, RCC configuration, clock configuration, and project configuration content

The project configuration part, which is not omitted, is the key point to configure in this tutorial.


Please refer to [2. Development environment construction and use: STM32CubeIDE installation and use] to understand how to configure the omitted parts of the project.

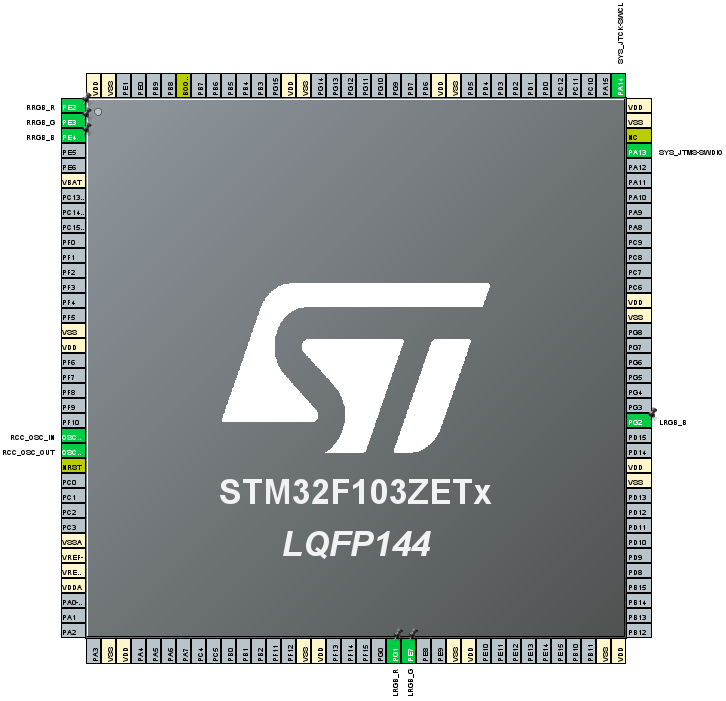

3.2、Pin configuration

Configure the specified pin functionality

You can directly select the corresponding pin number in the pin view, and the corresponding option will appear when the mouse is left clicked

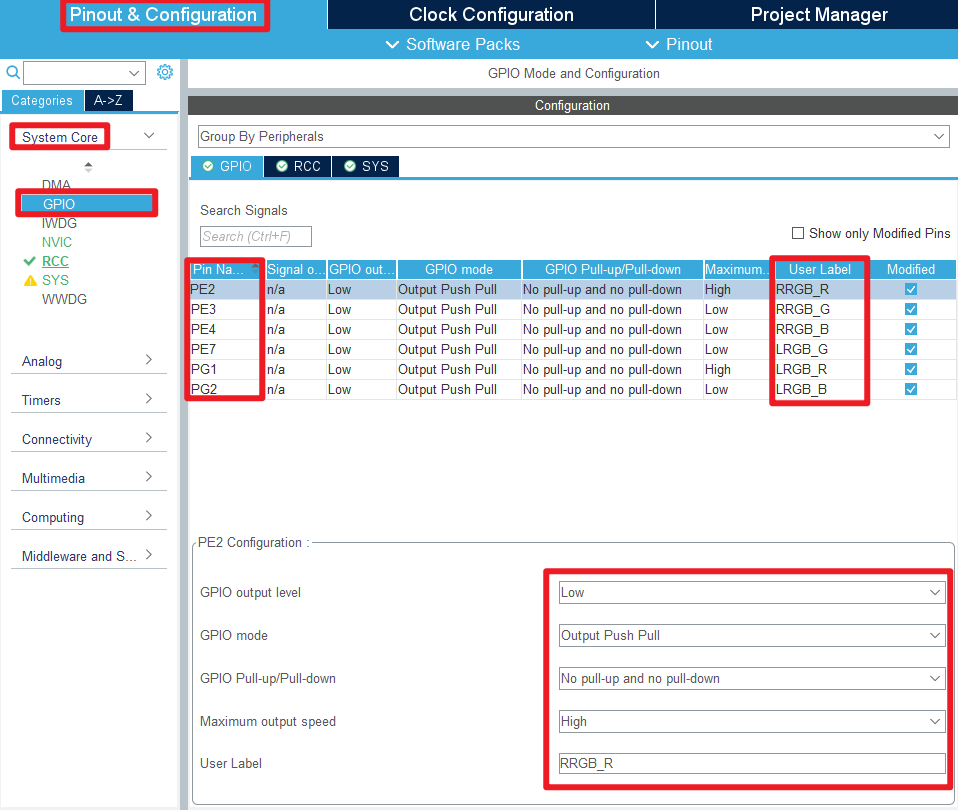

GPIO

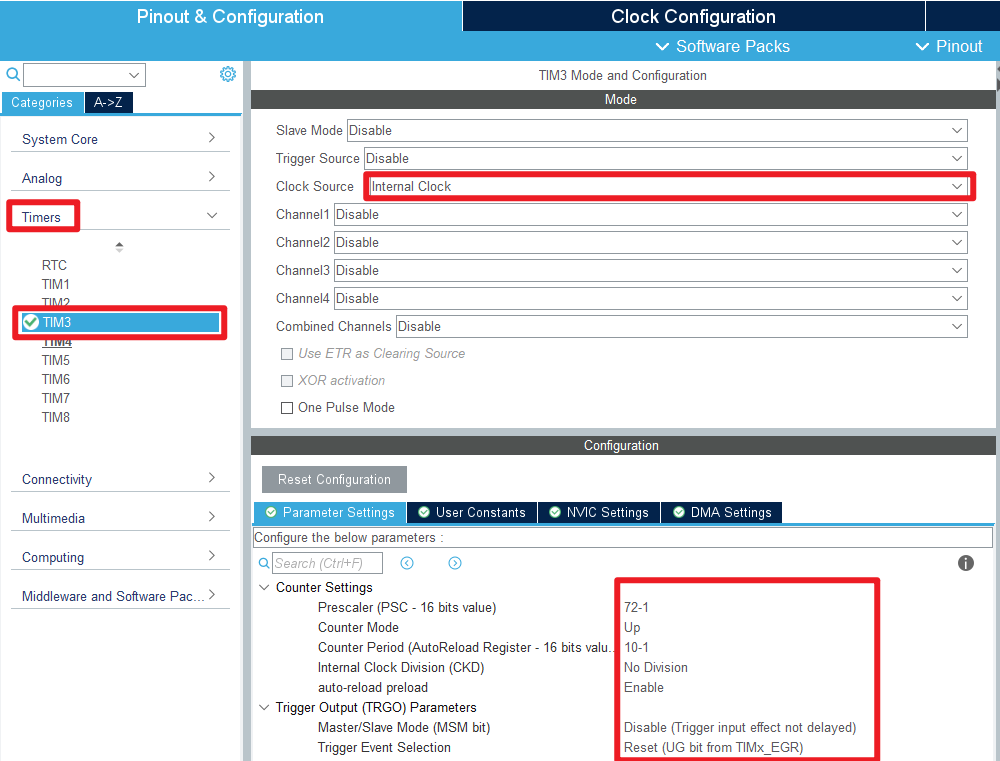

Timers

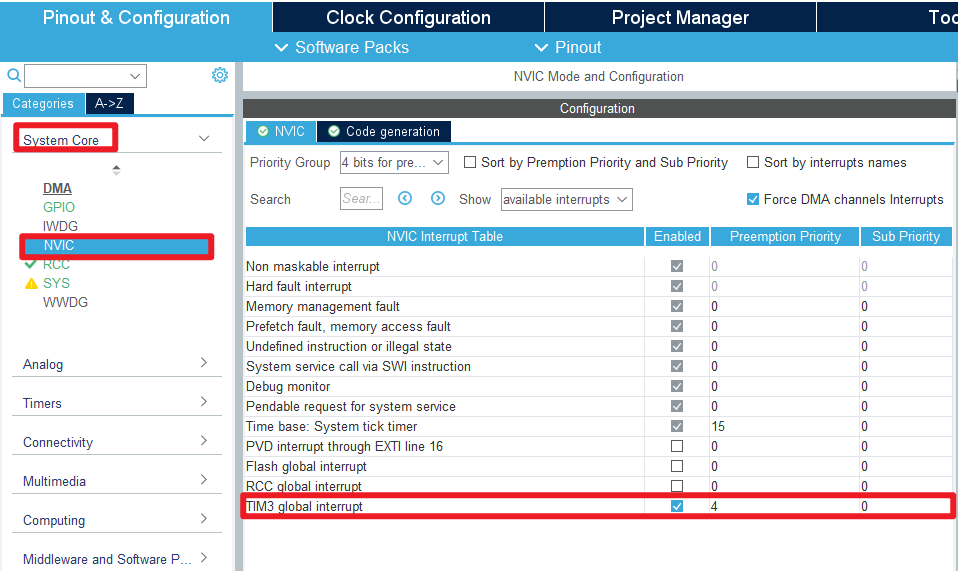

NVIC

The NVIC option allows you to change the priority

Advanced Settings

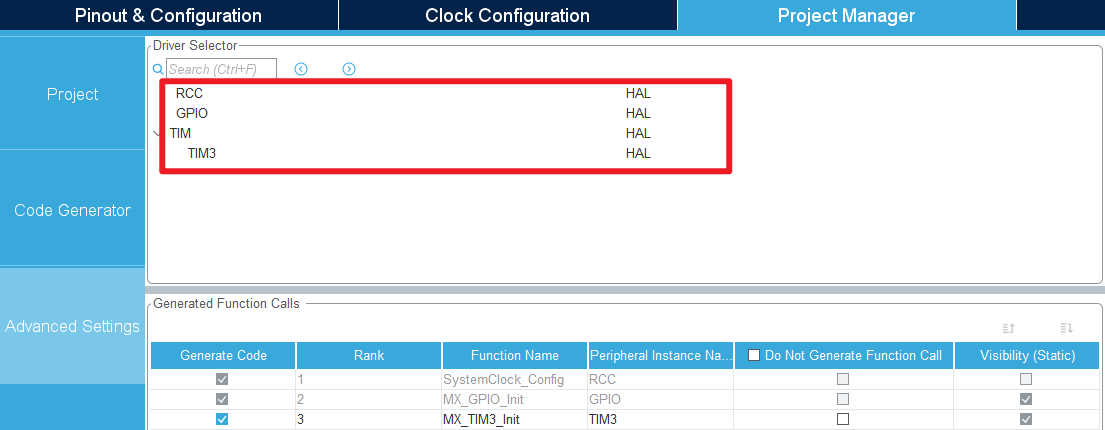

Generate code

4、Main function

This section mainly introduces the functional code written by users. Detailed code can be opened by yourself in the project file we provide, and enter the Bsp folder to view the source code.

Function analysis

The HAL library functions that were covered in the previous tutorial will not be covered


xxxxxxxxxx
If you want to find the HAL library and LL library function analysis involved in the entire tutorial, you can view the documents in the folder [8. STM32 Manual: STM32F1_HAL Library and LL Library_User Manual]

HAL_TIM_PeriodElapsedCallback：The timer update interrupt callback function

Function prototypes	void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
Functional Description	The timer update interrupt callback function
Input parameters	htim：Timer handle address
Return value	None
Notes	This function is called by HAL_TIM_IRQHandler, which allows you to write specific tasks

Each time the timer interrupt callback is entered, the timer's pwm_val variable is incremented by 1 and compared against the pwm_set variable in the main loop.

If pwm_val < pwm_set, RGB lights off; If pwm_val > pwm_set, RGB light is on.

Main loop function

In the main loop function, the comparison value of the interrupt callback function is changed by controlling the increment and decrement of the pwm_set variable to achieve different duty cycles per unit time.


xxxxxxxxxx
The above two functions can control the PWM duty cycle of RGB to achieve the gradual effect of light.

5、Experimental phenomenon

After downloading the program successfully, press the RESET button of the development board to observe the phenomenon of the development board


xxxxxxxxxx
For program download, please refer to [2. Development environment construction and use: program download and simulation]

phenomenon：

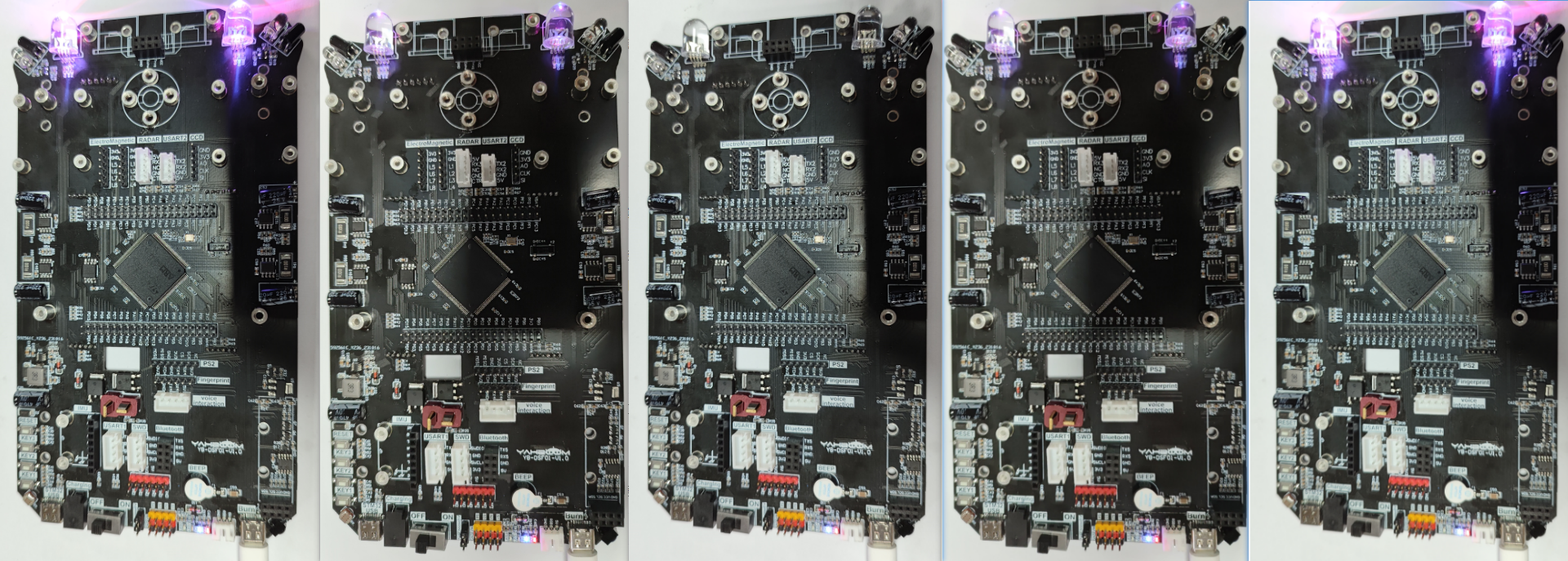

left and right RGB lights:display the purple color, which goes from bright to dark, and from dark to bright.
