I. Learning Objectives

Implement OLED to display system information

Use OLED to display system information such as CPU usage, system time, and memory usage, etc. This tutorial mainly focuses on understanding how to run the oled.py file that we have written, and does not analyse the specific implementation principles and code.

II. Preparation before the experiment

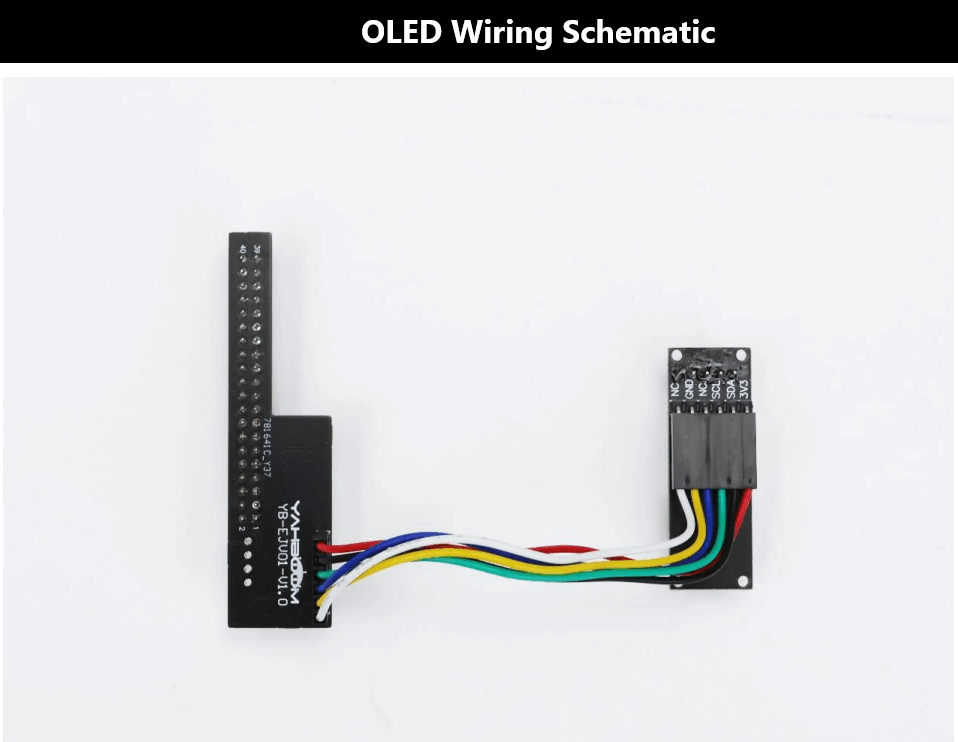

Follow the assembly video tutorial to install the Jetson CUBE Nano chassis, you can also refer to the "Jetson CUBE Nano Chassis_Hardware Wiring" tutorial document for installation, here to show the chassis expansion board and OLED hardware connection.

Chassis Expansion Board	3.3V	SDA	SCL	NC	GND	NC
OLED screen	3.3V	SDA	SCL	NC	GND	NC

III. Installing dependent libraries

Adafruit_SSD1306 library

Note: If you installed the Adafruit_SSD1306 library in the "Installing the CubeNano Driver Library" tutorial, you can skip this step!

The Adafruit_SSD1306 library is a dependency library in the oled.py file. Enter the following command in the terminal to install the Adafruit_SSD1306 library.


xxxxxxxxxx
pip3 install Adafruit_SSD1306

python Adafruit_SSD1306 library to control the data display of our OLED display.

NOTE: If the OLED display tutorial suggests that the PIL library is missing, the following solution can be taken.


xxxxxxxxxx
sudo apt-get install libjpeg-dev zlib1g-dev
pip3 install setuptools
pip3 install Pillow

IV. OLED Display System Information

1. OLED display

functionality	implementing function
OLED Initialise	begin()
OLED cleared display	clear()
OLED add characters	add_text(start_x, start_y, text, refresh)
OLED increases rows	add_line(text, line, refresh)
OLED refresh display	refresh()

2. Access to system information

functionality	implementing function
Read CPU usage	getCPULoadRate()
Read system time	getSystemTime()
Read memory footprint and total memory	getUsagedRAM()
Read TF Card Space Occupancy/Total TF Card Space	getUsagedDisk()
Get local IP	getLocalIP()
Read free TF card space/total TF card space	getFreeDisk()

3. Run the oled.py file

Copy the oled.py file from the documentation to the Jetson motherboard system, open a terminal in the directory where the oled.py file is located, and use the following command to run the oled.py file.


xxxxxxxxxx
python3 oled.py

Note: To terminate the run, you can press Ctrl + Z.

V. Experimental phenomena

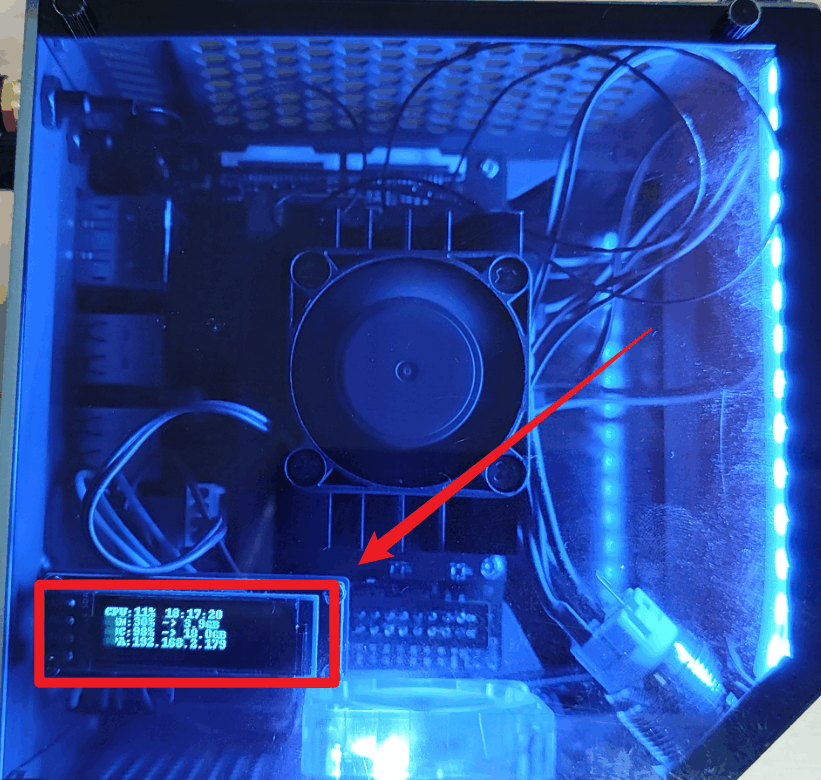

After running the oled.py file, you can see the OLED display related system information display (if you want to clear the OLED display, you can see the back of the "set boot" tutorial, run kill_oled.sh file).
