VNC configuration

Tip: The configured image has a username of Jetson and the original password is yahboom. If you are using a configured image and VNC is already configured, you can directly skip to step 6 and log in to VNC based on the current IP address

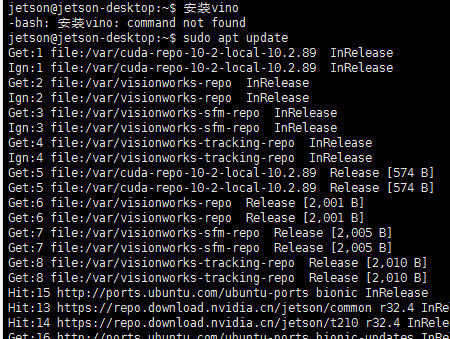

1、Install vino

sudo apt update

xxxxxxxxxx

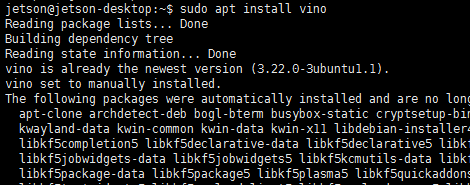

sudo apt install vino

2、Set Enable VNC service (at this time, the VNC server can be manually opened)

xxxxxxxxxx
sudo ln -s ../vino-server.service
/usr/lib/systemd/user/graphical-session.target.wants

xxxxxxxxxx
# Set VNC server:
gsettings set org.gnome.Vino prompt-enabled false
gsettings set org.gnome.Vino require-encryption false

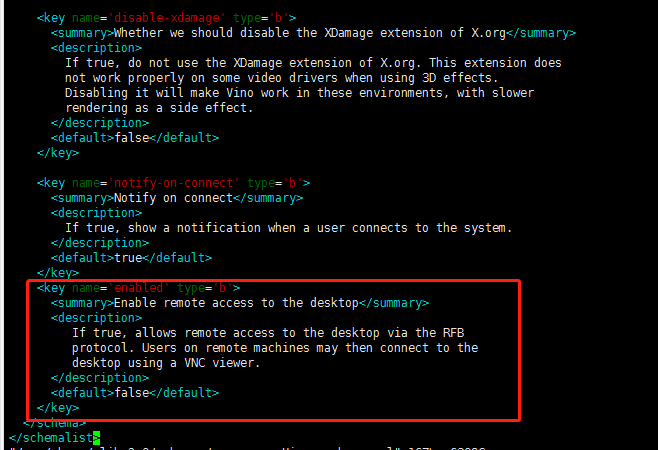

Edit org.gnome, restore the missing 'enabled' parameter, enter the command to enter the file, and add the key content below to the end of the file. Save and exit.

xxxxxxxxxx
sudo vi /usr/share/glib-2.0/schemas/org.gnome.Vino.gschema.xml

​x
<key name='enabled' type='b'>
<summary>Enable remote access to the desktop<summary>
<description>
​
If true, allows remote access to the desktop via the RFB protocol. Users on remote machines may then connect to the desktop using a VNC viewer.
​
<description>
<default>false<default>
<key>

Set to Gnome compilation mode

sudo glib-compile-schemas /usr/share/glib-2.0/schemas

Now the screen sharing panel is working in the unit control center But this is not enough to make Vino run! So you need to add the program Vino server when the session starts, using the following command line:

xxxxxxxxxx
/usr/lib/vino/vino-server

This type of startup belongs to manual mode. If manual startup is required every time, it will be more troublesome. Below, we will set the form of startup and self start.

3、Set VNC login password (change 'thepassword' to your own password)

xxxxxxxxxx
gsettings set org.gnome.Vino authentication-methods "['vnc']"
gsettings set org.gnome.Vino vnc-password $(echo -n 'thepassword' |base64)

4、Restart the machine and verify if vnc settings were successful

xxxxxxxxxx
sudo reboot

5. Set the VNC Server to start automatically after startup

The VNC server is only available after you log in locally to Jetson. If you want VNC to be automatically available, please use the system settings application to enable automatic login.

xxxxxxxxxx
gsettings set org.gnome.Vino enabled true
mkdir -p ~/.config/autostart
vi ~/.config/autostart/vino-server.desktop

Add the following content to the file, save and exit.

xxxxxxxxxx
[Desktop Entry]
Type=Application
Name=Vino VNC server
Exec=/usr/lib/vino/vino-server
NoDisplay=true

If the system is set to require a user password to enter before entering the desktop, the above modification script will not start until entering the desktop. It is recommended to set the system to automatically log in to the desktop by the user.

6. connect VNC Server

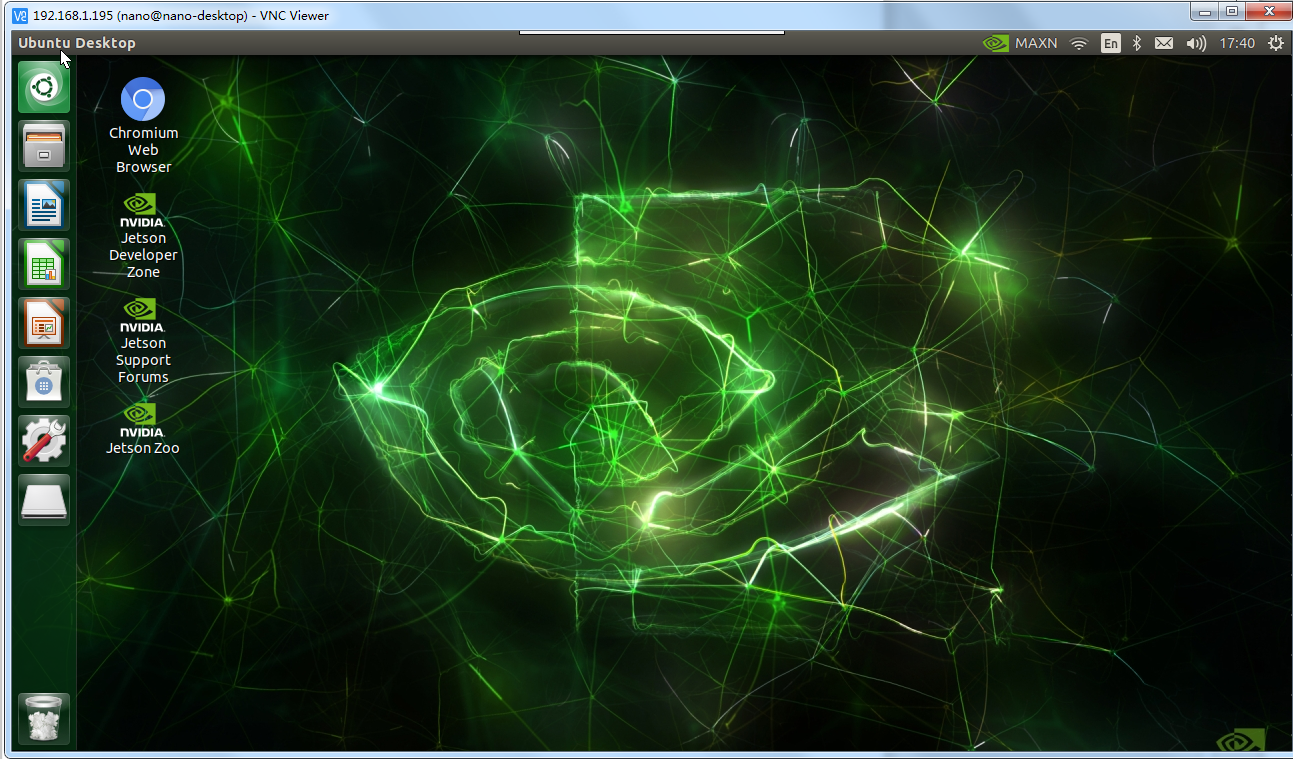

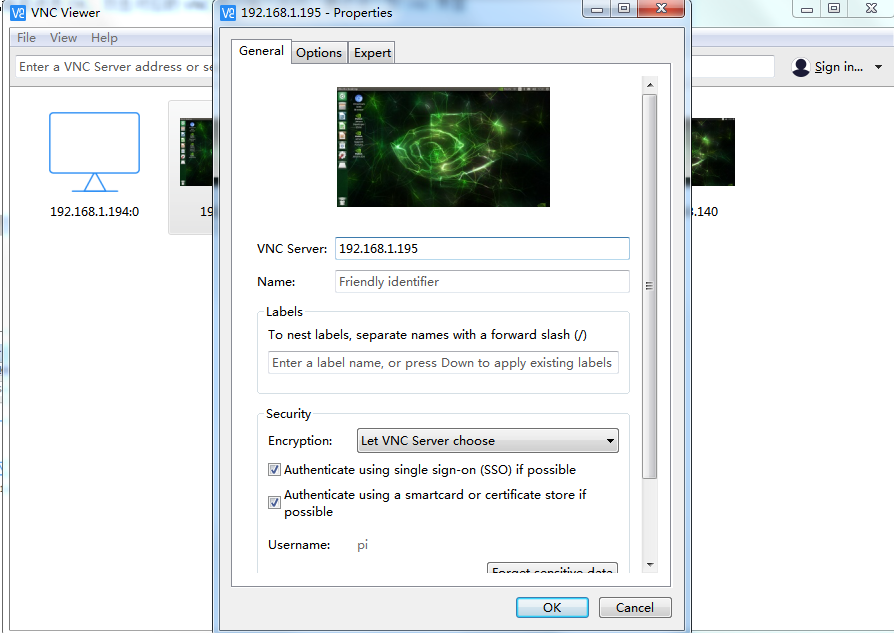

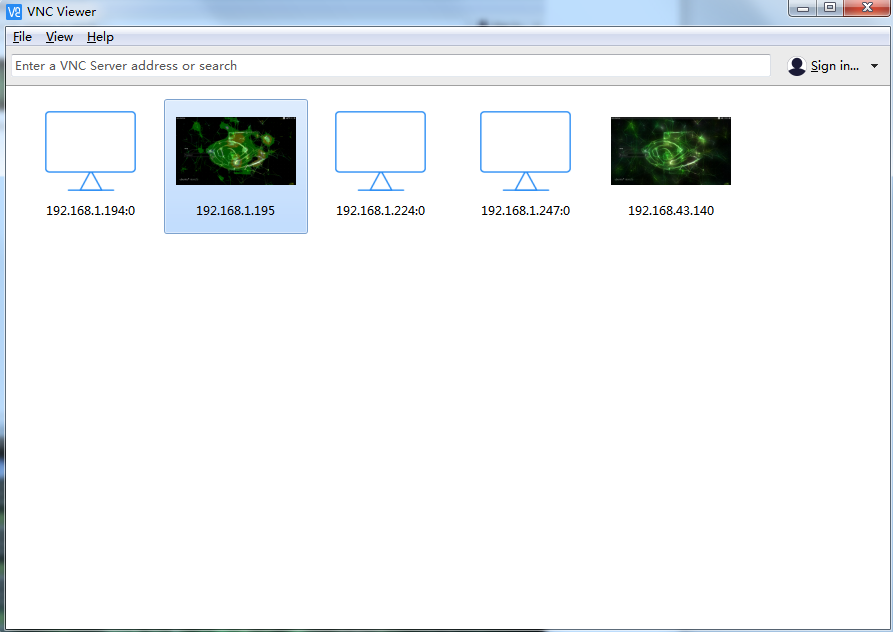

Using vnc To connect to VNC using the viewer software, the first step is to query the IP address. I found 192.168.1.195 here. After entering the IP address, click OK, double-click the corresponding VNC user to enter the password, and finally enter the VNC interface

7. Precautions for using VNC for Jetson orin NX

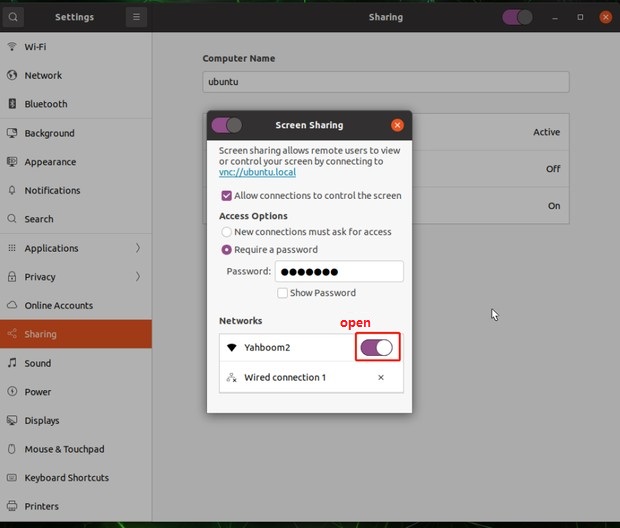

• Every time you connect to a new WiFi, you need to open the shared WiFi on the settings page, as shown in the figure

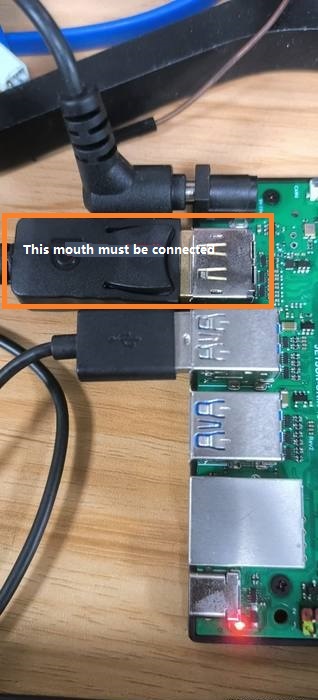

• To use VNC desktop, it is necessary to connect the dp display cable properly, otherwise you cannot access the desktop of Jetson Orin nx
