1.Introduction to Jetson Orin NX

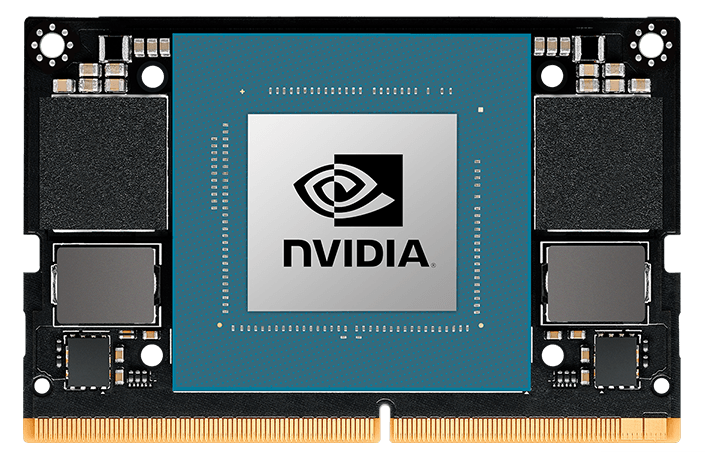

Jetson Orin NX is a new member of the Jetson series, with the core board shown in the following figure
performance
NVIDIA Jetson Orin NX has NVIDIA Ampere architecture GPU and Arm ® Cortex ®- A78AE CPU, as well as next-generation deep learning and visual accelerator. High speed IO, 102GB/s memory bandwidth and 12GB DRAM can feed multiple concurrent AI application pipelines.
Size (for the core board, without the base plate)
Size only 70mm x 45mm, Jetson Orin ™ The performance of NX is NVIDIA Jetson Xavier ™ 5 times the NX. Small size, strong performance, and high energy efficiency can bring excellent performance to new generation products such as drones and handheld devices.
power
low-power consumption Experience the higher performance of small robots and autonomous machines in a compact, energy-efficient and efficient system. The power consumption of compact modules is only 10 watts, with an upper limit of 25 watts. Gain a deeper understanding of the disruptive size, performance, and power consumption of the Jetson Orin NX, as well as the NVIDIA JetPack ™ The SDK, NVIDIA AI software stack, and ecosystem of services and products help your product quickly reach the market.
Important parameters
| jetson orin nx | 8GB | 16GB |
|---|---|---|
| AIperformance | 70Tops | 100tops |
| GPU | 1024 core NVIDIA Ampere architecture GPU with 32 Tensor Cores | Same as 8GB |
| GPU maximum frequency | 765 MHz | 918 MHz |
| CPU | 6 nuclear weapons ® Cortex ®- A78AE v8.2 64 DPI CPU 1.5MB L2 + 4MB L3 | 8 nuclear weapons ® Cortex ®- A78AE v8.2 64 MB CPU 2MB L2 + 4MB L3 |
| CPU Maximum frequency | 2 GHz | Same as 8GB |
| Memory | 8GB 128位 LPDDR5 102.4GB/s | 16GB 128位 LPDDR5 102.4GB/s |
| storage | Supports external NVMe | Supports external NVMe |
