Arduino uno R3

1.Preparation

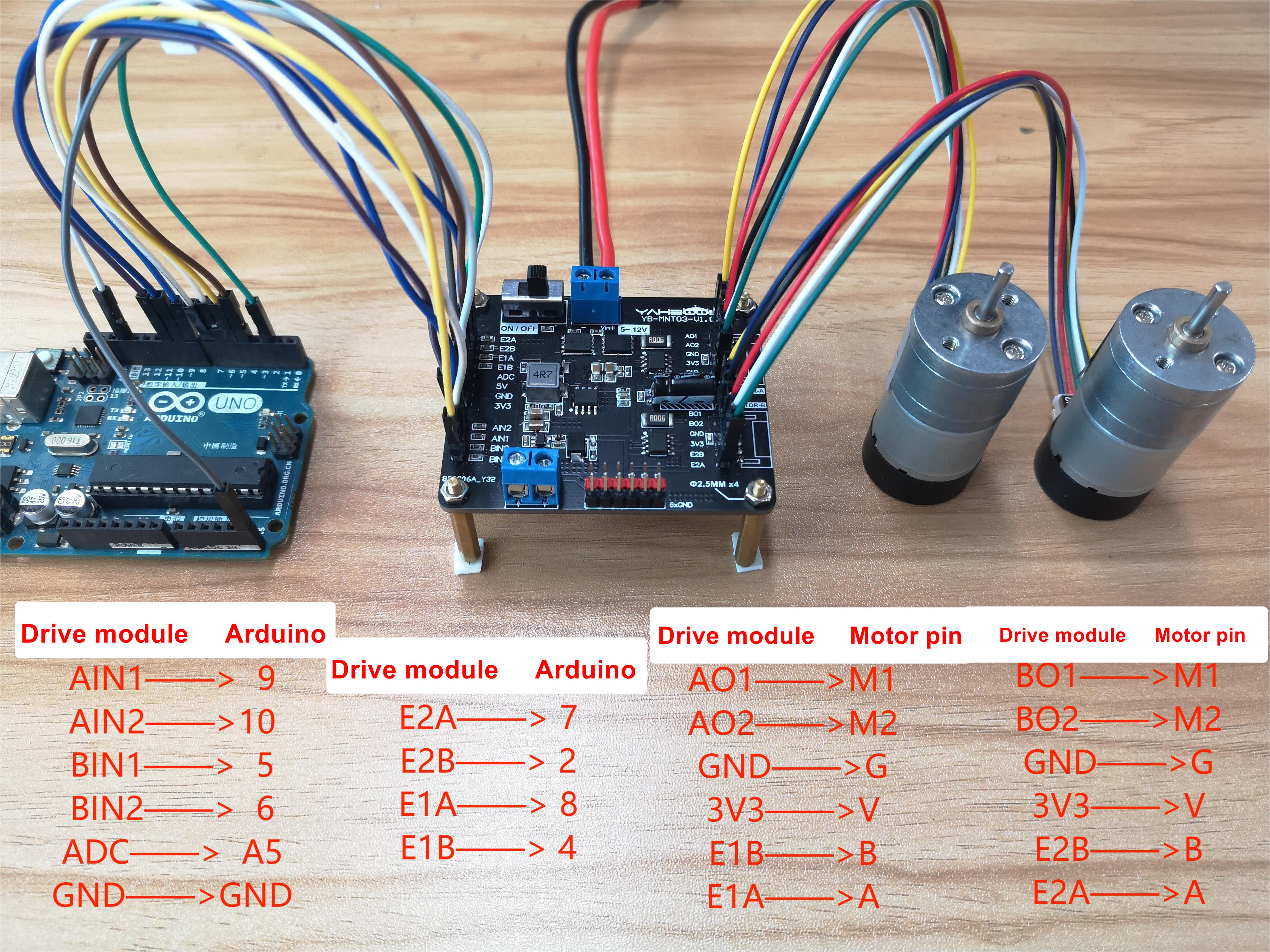

Connect the motor drive board and Arduino UNO according to the wiring diagram, connect the battery to the power input interface on motor drive module.

Note: The motor interface wire sequence of the dual motor drive board should correspond to the motor pin! Otherwise, the motor drive plate will be damaged

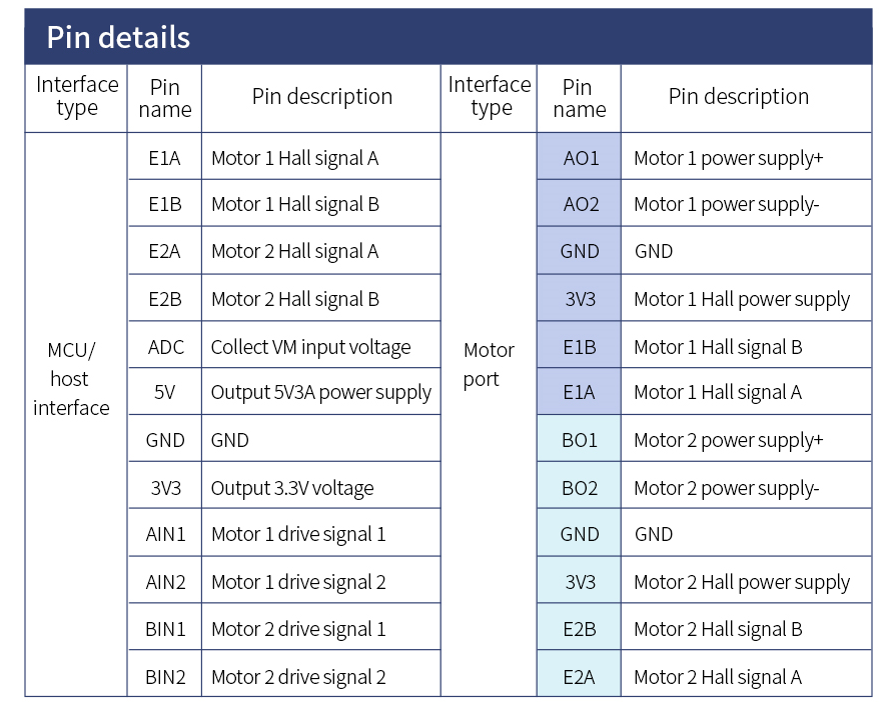

Note: The motor interface wire sequence of the dual motor drive board.

2.Code

​x
#include "PinChangeInt.h"    //External interrupt

/////////////////////////// Wiring method of this routine///////////////////////////
//  ArduinoUNOpin ------ AT8236module
//        Pin5        ---        BIN1
//        Pin6        ---        BIN2
//        Pin9        ---        AIN1
//        Pin10       ---        AIN2
//        PinA5       ---        ADC
//        Pin8        ---        E1A
//        Pin4        ---        E1B
//        Pin7        ---        E2A
//        Pin2        ---        E2B
//         GND        ---        GND

/////////PWM Output pin////////
#define BIN1 5
#define BIN2 6
#define AIN1 9
#define AIN2 10
#define Voltage A5 //Analog pin reading power supply voltage

/////////Encoder pin////////
#define ENCODER_L 8  //Encoder acquisition pins: 2 for each channel, 4 in total
#define DIRECTION_L 4
#define ENCODER_R 7
#define DIRECTION_R 2

double V; //Store voltage variable
unsigned long TimeA=0;
unsigned long EncoderTime=0;
bool EncoderFlag=1;
bool Mode=0;
unsigned char LED_Count;
volatile long Velocity_L, Velocity_R ;   //Left and right wheel encoder data
float Velocity_Left, Velocity_Right = 0;   //Left and right wheel speed
int delayShow=0;
unsigned long TimeB=0;
bool MotorFlag=1;
bool TimeFlag=1;

//The default PWM value can be set directly through the serial port for different speeds
int putPWM = 255;

void setup() {
  // put your setup code here, to run once:
  //PWMpin
  pinMode(AIN1, OUTPUT);
  pinMode(AIN2, OUTPUT);
  pinMode(BIN1, OUTPUT);
  pinMode(BIN2, OUTPUT);

  //LEDpin
  pinMode(13, OUTPUT);

  //Analog input pin
  pinMode(Voltage,INPUT); //Initialize as input

  //Encoder pin
  pinMode(ENCODER_L, INPUT);
  pinMode(DIRECTION_L, INPUT);
  pinMode(ENCODER_R, INPUT);
  pinMode(DIRECTION_R, INPUT);

  attachInterrupt(0, READ_ENCODER_R, CHANGE);           //Enable external interrupt encoder interface 1
  attachPinChangeInterrupt(4, READ_ENCODER_L, CHANGE);  //Enable external interrupt encoder interface 2

  //The PWM pin is set to zero to ensure that the motor does not rotate randomly. The parameter range is 0~255255, which is the full amplitude duty cycle
  analogWrite(AIN1, 0);
  analogWrite(AIN2, 0);
  analogWrite(BIN1, 0);
  analogWrite(BIN2, 0);

 //Initialize serial port for outputting battery voltage
  Serial.begin(9600);

}

//Set the PWM value of motor A, the range is - 255~255, where 0~255 corresponds to the duty ratio of 0~100, and a negative number means the motor is reversed
void Set_PWMA(int pwm)
{
  if(pwm>0)
  {
    analogWrite(AIN1, 255);
    analogWrite(AIN2, 255-pwm);
  }
  else
  {
    analogWrite(AIN2, 255);
    analogWrite(AIN1, 255+pwm);
  }
}

//Set the PWM value of motor B, the range is - 255~255, where 0~255 corresponds to duty cycle 0~100, and a negative number indicates the motor is in reverse direction
void Set_PWMB(int pwm)
{
  if(pwm>0)
  {
    analogWrite(BIN1, 255);
    analogWrite(BIN2, 255-pwm);
  }
  else
  {
    analogWrite(BIN2, 255);
    analogWrite(BIN1, 255+pwm);
  }
}

/*****Function function: external interrupt reads encoder data and has double frequency function. Note that external interrupt is triggered by jump edge********/
void READ_ENCODER_L() {
  if (digitalRead(ENCODER_L) == LOW) {     //If it is the interruption triggered by the falling edge
    if (digitalRead(DIRECTION_L) == LOW)      Velocity_L--;  //Determine direction according to another phase level
    else      Velocity_L++;
  }
  else {     //If it is an interruption triggered by the rising edge
    if (digitalRead(DIRECTION_L) == LOW)      Velocity_L++; //Determine direction according to another phase level
    else     Velocity_L--;
  }
}
/*****Function function: external interrupt reads encoder data and has double frequency function. Note that external interrupt is triggered by jump edge********/
void READ_ENCODER_R() {
  if (digitalRead(ENCODER_R) == LOW) { //If it is the interruption triggered by the falling edge
    if (digitalRead(DIRECTION_R) == LOW)      Velocity_R++;//Determine direction according to another phase level
    else      Velocity_R--;
  }
  else {   //If it is an interruption triggered by the rising edge
    if (digitalRead(DIRECTION_R) == LOW)      Velocity_R--; //Determine direction according to another phase level
    else     Velocity_R++;
  }
}

void loop() {

  // put your main code here, to run repeatedly:
  TimeA = millis(); //Get boot time

  //Record timestamp
  if(EncoderFlag) EncoderFlag=0,EncoderTime = TimeA;
  if(TimeFlag) TimeFlag=0,TimeB = TimeA;

  //Serial port changes PWM value to change motor speed
  if(Serial.available())
  {
    int getInt = Serial.parseInt(); //Resolve the integer in the serial port data
    if(getInt>255) getInt=255;
    if(getInt<-255) getInt=-255;
    putPWM = getInt;
  }

  //Change the rotation direction of the motor once every 4 seconds
  if(TimeA-TimeB>3999) TimeFlag=1,MotorFlag=!MotorFlag;
  if(MotorFlag)Set_PWMA(putPWM),Set_PWMB(putPWM);
  else Set_PWMA(-putPWM),Set_PWMB(-putPWM);


  //LED flashes for 1 second
  if(LED_Count==99) LED_Count=0,Mode=!Mode, digitalWrite(13,Mode);

  //Read encoder data once in 10ms
  if(TimeA-EncoderTime>9)
  {
   EncoderFlag=1;
   Velocity_Left = Velocity_L;    Velocity_L = 0;  //Read the data of the left wheel encoder and clear it to zero. This is the speed obtained by measuring the speed (number of pulses per unit time) with M method.
   Velocity_Right = Velocity_R;    Velocity_R = 0; //Read the right wheel encoder data and clear it

   Velocity_Left = (Velocity_Left/780.0f)*100*60;
   Velocity_Right = (Velocity_Right/780.0f)*100*60;

   delayShow++;
   LED_Count++;

   //Display data once in 50ms
   if(delayShow==50)
   {
     delayShow=0;
     Serial.print("Velocity_L = ");
     Serial.print(Velocity_Left);
     Serial.println("        R/M");

     Serial.print("Velocity_R = ");
     Serial.print(Velocity_Right);
     Serial.println("        R/M");

     V=analogRead(Voltage); //Read analog quantity of analog pin A0
     Serial.print("Input voltage = ");
     Serial.print(V*0.05371);  //Convert analog quantity and output through serial port
     Serial.println("V");

     Serial.print("PWM = ");
     Serial.println(putPWM);

     Serial.println("");
     Serial.println("");
   }
  }
}

3.Experimental result

Connect the arduino to the computer through the USB data cable, upload the program to the Arduino board, motor will start to rotate.

Open the serial port monitor of the Arduino IDE and set the baud rate of 9600. You can see that the serial port displays the positive and negative speed of the two motors, the input voltage value, and the current pwm speed regulation.
